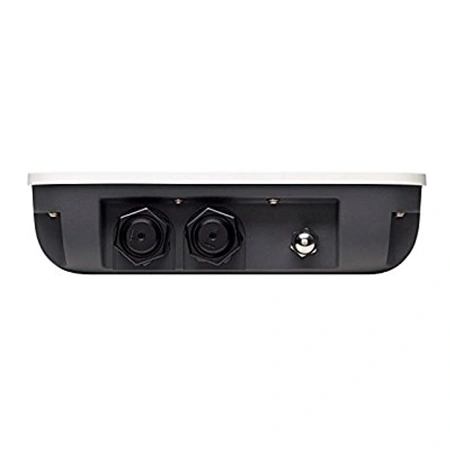

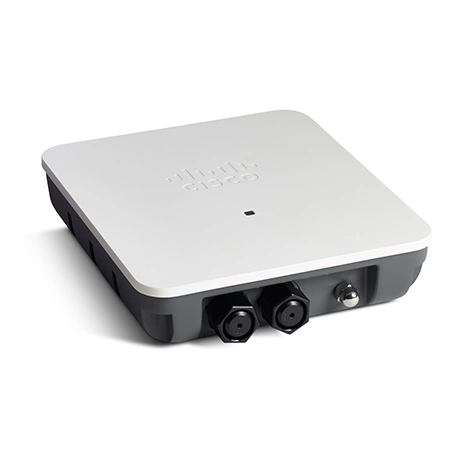

اکسس پوینت WAP571E-E-K9 سیسکو

WAP571E-E-K9

Cisco Small Business 500 Series Wireless Access Points

08-MAR-2016

قابل سفارش

2- 10/100/1000 Ethernet, with support for 802.3at at PoE support is only for 1 port and not 2 ports

IEEE 802.3at/af Ethernet switch
Cisco power injector: SB-PWR-INJ2-xx
Peak power: 18 Watts

802.11n/ac
3x3 MIMO with 3 spatial streams at 5 GHz and 2.4 GHz
21 for 20-MHz bandwidth; 9 for 40-MHz bandwidth; 4 for 80-MHz bandwidth
1 for 20-MHz bandwidth; 7 for 40-MHz bandwidth
802.11 dynamic frequency selection (DFS)

External antennas :None
Internal antennas: 6 Internal fixed PIFA antenna

Dual radio, orthogonal frequency division multiplexing (OFDM)
IEEE 802.11a/n: OFDM (BPSK/QPSK/16QAM/64QAM/256AM)
IEEE 802.11ac: OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)

6

3.55 dBi for 5 GHz, 2.98 dBi for 2.4 GHz

2.4 GHz
● 802.11b: 20.0 +/- 1.5 dBm at CH6, all rates
● 802.11g: 20.0 +/- 1.5 dBm at CH6, 6 Mbps
● 802.11g: 17.0 +/- 1.5 dBm at CH6, 54 Mbps
● 802.11n(HT20): 20.0 +/- 1.5 dBm at CH6, MCS0
● 802.11n(HT20): 17.0 +/- 1.5 dBm at CH6, MCS7
● 802.11n(HT40): 16.0 +/- 1.5 dBm at CH6, MCS7
5 GHz UNII-1 (5150~5250 MHz)
● 802.11a: 22.0 +/- 1.5 dBm at 6 Mbps
● 802.11a: 22.0 +/- 1.5 dBm at 54 Mbps
● 802.11ac(HT20): 22.0 +/- 1.5 dBm at MCS0
● 8

Dual concurrent radios (2.4 and 5 GHz)

9.05 x 7.87 x 1.96 in. (230 x 200 x 50 mm)

2.97 lb or 1350g

IEEE 802.11ac, 802.11a, 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q
(VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC
2460)

Operating temperature -40° to 55°C (-40° to 131°F) with solar loading or -40 to 65°C (-40° to 149°F) without solar loading
Storage temperature -50° to 70°C (-58 to 158°F)
Operating humidity 5% to 95% noncondensing
Storage humidity 5% to 90% noncondensing
